Screen changing colors

I had a new video card put in by another person, MSI 9400gt, and now
it seems that my olivia 32 monitor , occasionally every few minutes
takes on a greenish tint for a few seconds.
i tried connecting a CRT monitor to the PC, HP athlon 4600, dual core,
2GB, and i dont see this greenish tint.

I havent noticed this problem while watching TV on the olivia via
satellite, or cable.

So is this new card defective? or is it a compatibility problem?

Since I had this installed by an private person it is more complicated
to get a new card. He gave me a "bargain" and only charged me 135
dollars too.

So do you think it is a defective Card or compatibility issue?

I would have installed it myself but at the time I had recently had my
brain froze and aorta replaced and was not up to the task of trouble
shooting, though I did suspect it was the card when there was no
picture.

Thanks
Roky

Re: Screen changing colors

Roky wrote:
> I had a new video card put in by another person, MSI 9400gt, and now
> it seems that my olivia 32 monitor , occasionally every few minutes
> takes on a greenish tint for a few seconds.
> i tried connecting a CRT monitor to the PC, HP athlon 4600, dual core,
> 2GB, and i dont see this greenish tint.
>
> I havent noticed this problem while watching TV on the olivia via
> satellite, or cable.
>
> So is this new card defective? or is it a compatibility problem?
>
> Since I had this installed by an private person it is more complicated
> to get a new card. He gave me a "bargain" and only charged me 135
> dollars too.
>
> So do you think it is a defective Card or compatibility issue?
>
> I would have installed it myself but at the time I had recently had my
> brain froze and aorta replaced and was not up to the task of trouble
> shooting, though I did suspect it was the card when there was no
> picture.
>
> Thanks
> Roky

Do you have a second computer to test with ?

I would test the Olivia 32 first, to make sure the display
itself is not at fault. Using the output of a second
computer, you could test the Olivia and see if the tint is
still there.

*******

If the 9400GT has two connectors, I might try the other
connector, and see if the symptoms remain. And if the
card has one DVI and one VGA, and you were using the

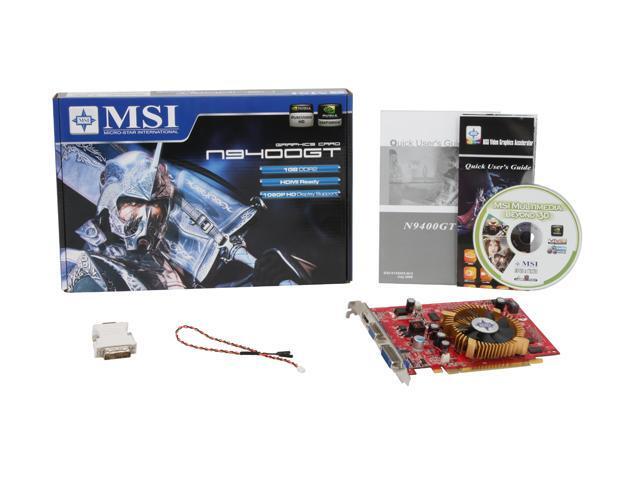

15 pin VGA, you can get DVI-I to VGA adapter dongles,
to convert the DVI connector into a VGA one. And using
that output, you could test the VGA again. In other words,
using the dongle, you can make a "two VGA" card.

http://c1.neweggimages.com/NeweggIma...127-398-07.jpg

I'd seen a green tint on a CRT monitor, and it was caused by
using "sync on green" mode. Normally, VGA uses RGBHV, which
stands for red, green, blue, horizontal sync, vertical sync.
There are a number of ways RGBHV can be run. Going from memory,
you can use all five signals. You can disable one sync signal
and run RGB and composite sync. But the other mode you can use,
disables both sync signals, and the sync pulse instead travels
on the green gun. And when I had a computer use that mode,
it caused my old CRT to turn slightly greenish (very annoying).

You can also get a tint on a VGA output, if one of the colors
goes open circuit. But to get green, the red and blue would
both have to open up. Thus my guess, that if it was a problem
with signals on the cable, the only mode I know of, would
be something like sync-on-green, and that really isn't too
likely to be the way the PC operates it. And that leaves
a problem with the innards of the Olivia.

For this to be a video card problem, you have to ask yourself,
how the video card could do that, and do it intermittently.
The intermittent part, suggests a connection problem. But
to get the green tint, probably requires more than one open
signal.

So if it was my problem, I'd be starting with the Olivia
first, and make absolutely sure it is good. And then,
do a quick check that the VGA cable is not at fault.
Video cards usually pick more spectacular ways to fail,
like squares, lines, black circles on the screen, or no
output at all. An intermittent green tint is a bit too
clever for a video card.

Paul

Re: Screen changing colors

"Roky" <rokybird@yahoo.com> wrote in message
news:f4ad9d3c-b1ee-45c3-9aed-9b7cbf7ebd63@g1g2000vbr.googlegroups.com...
>I had a new video card put in by another person, MSI 9400gt, and now
> it seems that my olivia 32 monitor , occasionally every few minutes
> takes on a greenish tint for a few seconds.
> i tried connecting a CRT monitor to the PC, HP athlon 4600, dual core,
> 2GB, and i dont see this greenish tint.
>
> I havent noticed this problem while watching TV on the olivia via
> satellite, or cable.
>
> So is this new card defective? or is it a compatibility problem?
>
> Since I had this installed by an private person it is more complicated
> to get a new card. He gave me a "bargain" and only charged me 135
> dollars too.
>
> So do you think it is a defective Card or compatibility issue?
>
> I would have installed it myself but at the time I had recently had my
> brain froze and aorta replaced and was not up to the task of trouble
> shooting, though I did suspect it was the card when there was no
> picture.
>
> Thanks
> Roky

It can be the video card or the video cable. The cable has many wires in it,
the one that carries data that is opposite of Green can be broken. You can
test the cable by, and to a certain extent the card, by moving the cable
around a little bit and watching the screen.

Since you can change the monitor (and the video cable), my guess is going to
be that your monitor or cable is failing.

You might look to the driver for the monitor, but I'm guessing a hardware
issue.

Re: Screen changing colors

Re: Screen changing colors-not with HDMI connector

On Sep 14, 9:15*pm, Paul <nos...@needed.com> wrote:
> Roky wrote:
> > I had a new video card put in by another person, MSI 9400gt, and now
> > it seems that my olivia 32 monitor , occasionally every few minutes
> > takes on a greenish tint for a few seconds.
> > i tried connecting a CRT monitor to the PC, HP athlon 4600, dual core,
> > 2GB, and i dont see this greenish tint.
>
> > I havent noticed this problem while watching TV on the olivia via
> > satellite, or cable.
>
> > So is this new card defective? or is it a compatibility problem?
>
> > Since I had this installed by an private person it is more complicated
> > to get a new card. He gave me a "bargain" and only charged me 135
> > dollars too.
>
> > So do you think it is a defective Card or compatibility issue?
>
> > I would have installed it myself but at the time I had recently had my
> > brain froze and aorta replaced and was not up to the task of trouble
> > shooting, though I did suspect it was the card when there was no
> > picture.
>
> > Thanks
> > Roky
>
> Do you have a second computer to test with ?
>
> I would test the Olivia 32 first, to make sure the display
> itself is not at fault. Using the output of a second
> computer, you could test the Olivia and see if the tint is
> still there.
>
> *******
>
> If the 9400GT has two connectors, I might try the other
> connector, and see if the symptoms remain. And if the
> card has one DVI and one VGA, and you were using the
> 15 pin VGA, you can get DVI-I to VGA adapter dongles,
> to convert the DVI connector into a VGA one. And using
> that output, you could test the VGA again. In other words,
> using the dongle, you can make a "two VGA" card.
>
> http://c1.neweggimages.com/NeweggIma...127-398-07.jpg
>
> I'd seen a green tint on a CRT monitor, and it was caused by
> using "sync on green" mode. Normally, VGA uses RGBHV, which
> stands for red, green, blue, horizontal sync, vertical sync.
> There are a number of ways RGBHV can be run. Going from memory,
> you can use all five signals. You can disable one sync signal
> and run RGB and composite sync. But the other mode you can use,
> disables both sync signals, and the sync pulse instead travels
> on the green gun. And when I had a computer use that mode,
> it caused my old CRT to turn slightly greenish (very annoying).
>
> You can also get a tint on a VGA output, if one of the colors
> goes open circuit. But to get green, the red and blue would
> both have to open up. Thus my guess, that if it was a problem
> with signals on the cable, the only mode I know of, would
> be something like sync-on-green, and that really isn't too
> likely to be the way the PC operates it. And that leaves
> a problem with the innards of the Olivia.
>
> For this to be a video card problem, you have to ask yourself,
> how the video card could do that, and do it intermittently.
> The intermittent part, suggests a connection problem. But
> to get the green tint, probably requires more than one open
> signal.
>
> So if it was my problem, I'd be starting with the Olivia
> first, and make absolutely sure it is good. And then,
> do a quick check that the VGA cable is not at fault.
> Video cards usually pick more spectacular ways to fail,
> like squares, lines, black circles on the screen, or no
> output at all. An intermittent green tint is a bit too
> clever for a video card.
>
> * * Paul

I tried connecting the PC (windows xp) with the HDMI connector. No
green tint. ONly problem here is the browser window is cut off a tiny
bit, about one or two letters on each side, with the Olivia 32 set to
1:1 mode

i did try switching to the DVI with adapter to VGA output from the
video card and the problem was the same. But a I said i have only
noticed this on the Olivea and not on the CRT monitors (2) that i
tried.

Since this problem started with the installation of the new card I
think it is most likely not the TV or monitors.
It is a compatibility issue with Olivea?

Should I try to replace the card? I need to run the Olivea with the
VGA because it has ONLY one HDMI input and i need that for HD TV.
Idont have another PC here at the moment to test it

Thanks for your help.

Roky

Re: Screen changing colors-not with HDMI connector

Roky wrote:

>
> I tried connecting the PC (windows xp) with the HDMI connector. No
> green tint. ONly problem here is the browser window is cut off a tiny
> bit, about one or two letters on each side, with the Olivia 32 set to
> 1:1 mode
>
> i did try switching to the DVI with adapter to VGA output from the
> video card and the problem was the same. But a I said i have only
> noticed this on the Olivea and not on the CRT monitors (2) that i
> tried.
>
> Since this problem started with the installation of the new card I
> think it is most likely not the TV or monitors.
> It is a compatibility issue with Olivea?
>
> Should I try to replace the card? I need to run the Olivea with the
> VGA because it has ONLY one HDMI input and i need that for HD TV.
> Idont have another PC here at the moment to test it
>
> Thanks for your help.
>
> Roky

Have you considered getting an HDMI switching device of some sort ?
Maybe you could increase the number of inputs on the TV, with an
external box. Here are a couple examples. What worries me a bit
about these things, is customer average reviews never seem to
exceed 3 out of 5, so the technology leaves a few people unhappy.
The CNET standard blurb in the review, claims these things are
"never twice the same" with respect to trying a wide range of
HDMI devices. Which is kinda weird, when you consider that the
switch has so little to do with the signal (reclocks it maybe).

http://www.newegg.com/Product/Produc...82E16817182095

http://reviews.cnet.com/audio-video-...?tag=mncol;txt

To debug what is going on with the signals on your VGA setup, you'd
need an oscilloscope. Just to see if there is evidence of sync pulses
on the green signal. I can't see the green tint coming from a defect
in RGB, because it would require Red and Blue to screw up at the same time.
So my assumption would be, Olevia is switching to Sync-On-Green mode
because it thinks it sees Sync on there. But because the set has
available to it, the entire RGBHV, it should be happy with the
horizontal and vertical sync it is getting on H and V, and it shouldn't
even look on the green signal, if it has solid signals on H and V.

There is a figure here, showing a "sync tip". Sync, as a signal level,
is "blacker than black". So, it would be up to the LCD TV to mistakenly
detect a downward going signal as a sync pulse. And fail to detect
the stronger, cleaner pulses it is getting on H and V.

http://en.wikipedia.org/wiki/File:Composite_Video.svg

If you post again, please post the exact model number of the
Olevia. I'd like to take a quick look at the manual, to see what
options its got.

Paul

Re: Screen changing colors-FIXED IT!!!!!!!!!!!!! Media Center WorkingToo.

I worked up the nerve to do a system restore back to june. After it
was done the screen came on totally black. After a little thinking I
decided having 3 cables in the video card might not be a good idea so
i pulled out two and left the VGA. It then booted up with a tiny
screen displayed on the Olevia in the lowest resolution. I then
installed the MSI video card CD and tried to install the drivers on
the CD but the PC said the drivers already installed were newer, which
didnt make sense. So I went with the old, but newer drivers. Then I
rebooted it, fiddled with the settings and finally got it back to
normal. Yippie!

The green flickering is gone with VGA to the OLivea 32 monitor. And
the MC is now working like it should without locking up. Both problems
fixed with system restore.

Thanks guys for all the advice.

Roky

On Sep 16, 5:52*pm, Paul <nos...@needed.com> wrote:
> Roky wrote:
>
> > I tried connecting the PC (windows xp) with the HDMI connector. No
> > green tint. ONly problem here is the browser window is cut off a tiny
> > bit, about one or two letters on each side, with the Olivia 32 set to
> > 1:1 mode
>
> > i did try switching to the DVI with adapter to VGA output from the
> > video card and the problem was the same. But a I said i have only
> > noticed this on the Olivea and not on the CRT monitors (2) that i
> > tried.
>
> > Since this problem started with the installation of the new card I
> > think it is most likely not the TV or monitors.
> > It is a compatibility issue with Olivea?
>
> > Should I try to replace the card? I need to run the Olivea with the
> > VGA because it has ONLY one HDMI input and i need that for HD TV.
> > Idont have another PC here at the moment to test it
>
> > Thanks for your help.
>
> > Roky
>
> Have you considered getting an HDMI switching device of some sort ?
> Maybe you could increase the number of inputs on the TV, with an
> external box. Here are a couple examples. What worries me a bit
> about these things, is customer average reviews never seem to
> exceed 3 out of 5, so the technology leaves a few people unhappy.
> The CNET standard blurb in the review, claims these things are
> "never twice the same" with respect to trying a wide range of
> HDMI devices. Which is kinda weird, when you consider that the
> switch has so little to do with the signal (reclocks it maybe).
>
> http://www.newegg.com/Product/Produc...82E16817182095
>
> http://reviews.cnet.com/audio-video-...ice-5x1-hdmi-s...
>
> To debug what is going on with the signals on your VGA setup, you'd
> need an oscilloscope. Just to see if there is evidence of sync pulses
> on the green signal. *I can't see the green tint coming from a defect
> in RGB, because it would require Red and Blue to screw up at the same time.
> So my assumption would be, Olevia is switching to Sync-On-Green mode
> because it thinks it sees Sync on there. But because the set has
> available to it, the entire RGBHV, it should be happy with the
> horizontal and vertical sync it is getting on H and V, and it shouldn't
> even look on the green signal, if it has solid signals on H and V.
>
> There is a figure here, showing a "sync tip". Sync, as a signal level,
> is "blacker than black". So, it would be up to the LCD TV to mistakenly
> detect a downward going signal as a sync pulse. And fail to detect
> the stronger, cleaner pulses it is getting on H and V.
>
> http://en.wikipedia.org/wiki/File:Composite_Video.svg
>
> If you post again, please post the exact model number of the
> Olevia. I'd like to take a quick look at the manual, to see what
> options its got.
>
> * * Paul
